Innovative Integration: Zero Liquid Discharge Solution Delivered

Start-to-Finish ZLD Plant Designed and Delivered to a US Mine

Oct 13th 2023

Saltworks has delivered a complete zero liquid discharge (ZLD) industrial desalination solution to a mining site in the US. The uniquely modular and digitized plant enabled the client to rapidly install and implement the intelligently automated ZLD system with reduced inputs.

For cost-optimized ZLD, most projects need an ideal blend of membrane, chemical, and thermal stages to minimize costs, maximize freshwater recovery, and reduce waste products. Saltworks’ innovative, modular, and digitized products operate as standalone units or can be packaged together into a complete system.

The delivered plant integrates BrineRefine, XtremeUF, XtremeRO, and SaltMaker MVR for optimized performance and costs. In Saltworks’ ZLD solutions, each technology is delivered on a compact skid, fully equipped with controls and support systems for quick deployment and easy installation at the client’s site. All interconnections and digital controls are provided, further accelerating installation, start-up and lowering integration costs.

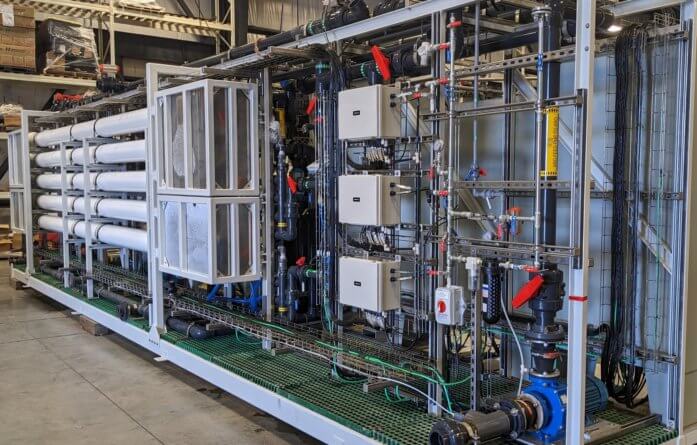

A photo of a Saltworks XtremeRO advanced reverse osmosis plant.
A photo of a Saltworks technician working on ZLD project.

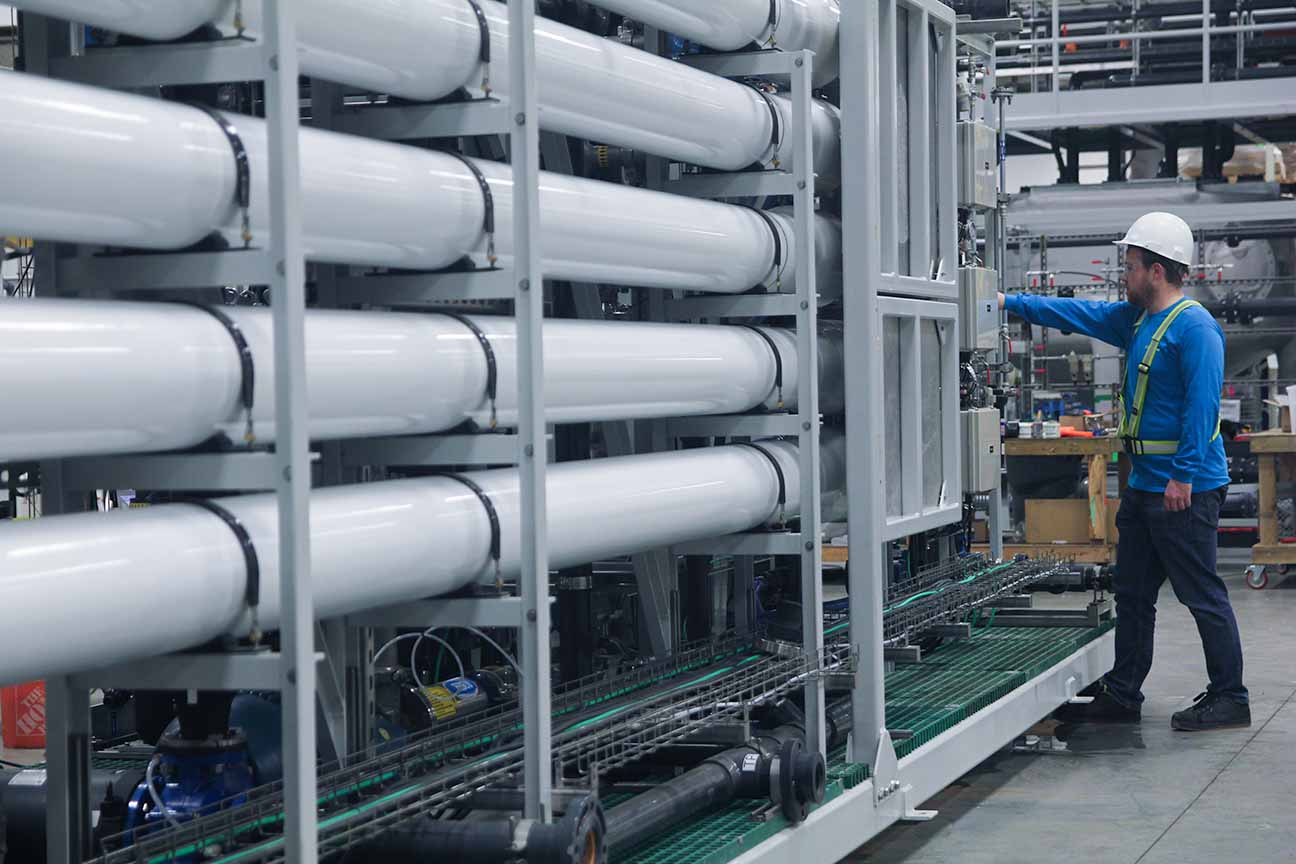

The XtremeRO unit with a Saltworks team member during manufacturing at the Saltworks factory.

To optimize cost and energy use, maximizing reverse osmosis (RO) system recovery is key. This requires protecting RO units from scaling and fouling as higher concentrations are reached. Because the initial wastewater feed is saturated in scaling ions, Saltworks’ BrineRefine continuous stirred tank reactor (CSTR) first precipitates out solids, then allowing our XtremeUF ceramic ultrafiltration unit to reject the resulting sub-micron precipitants.

This process protects the downstream XtremeRO high-pressure reverse osmosis system, which recovers more water and produces a high-concentration, low-volume brine.  Finally, a SaltMaker MVR thermal evaporator-crystallizer concentrates even further and produces zero liquid discharge solids.

Saltworks’ standardized, repeatable, and digitized modular plants are available to serve your industrial desalination or lithium refining projects.

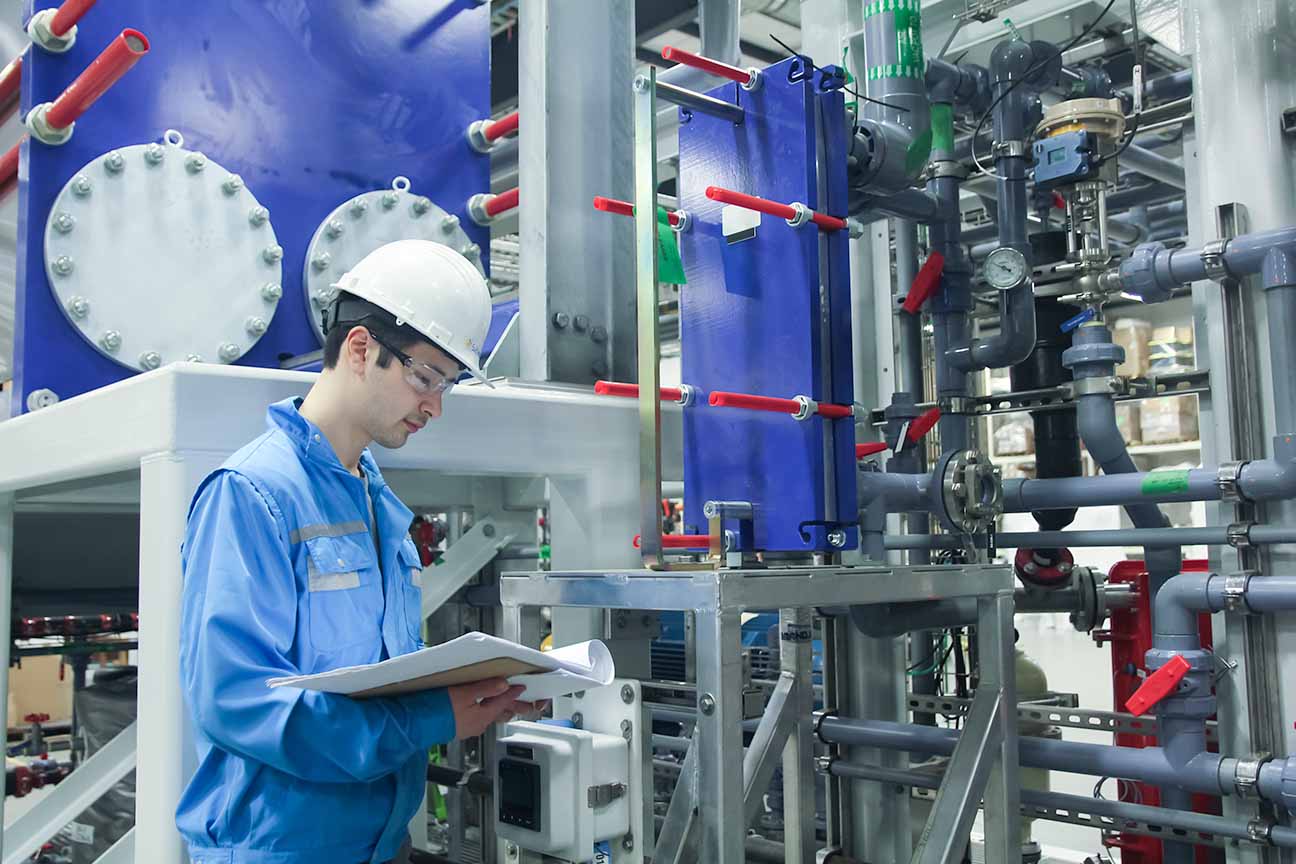

Engineer working on SaltMaker MVR project.
A photo of a full-scale SaltMaker Unit at Saltworks' HQ.

The SaltMaker MVR unit with a Saltworks’ technician during manufacturing at the Saltworks factory.

Considering a zero liquid discharge solution? Contact our team today to take advantage of our pioneering expertise in ZLD, process optimization, engineering, and manufacturing.
